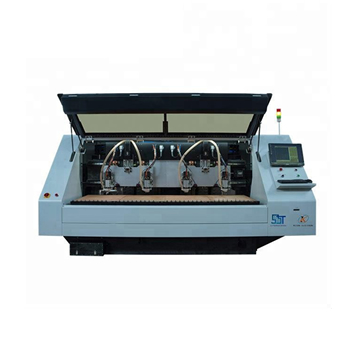

Pluritec Giga-8888

Driller w/ 8 working stations (4 front and 4 rear), each station is equipped with a WW 1331-41 spindle (125.000 Rpm), max. panel size: 570 x 720 mm, CNC 45 control, suitable for drilling diameters: 0.10 – 6.35 mm, X & Y linear drives, drilling accuracy approx.: 0.018 mm, positioning speed: 25 m/min. Overall machine dimensions: 4020 x 2320 x 2200 mm. Electrical connections: 380 V – 50 Hz – 3 Phase.

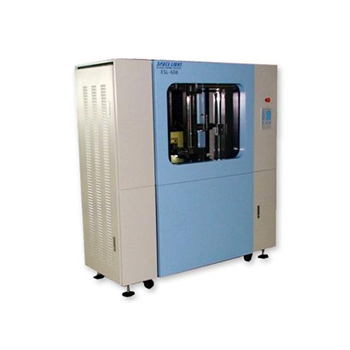

ESL-608 (Flying Probe Testing)

  • Flying Probe Tester ESL-608
  • Suitable for prototype, small batch, high-precision board testing

MANIA MPP 4504

Brand: Mania
Model: MPP 4504
Dimensions (L x W x H) : 1500mm x 690mm x 1830mm.



  • Flying probe tester (FPT) w/ 4 probes, two probes front and two probes rear.
  • Model: ‘speedy’, including repair station.
  • Max. test area: 620 x 510 mm.
  • Overall machine dimensions (L x W x H): 1500 x 690 x 1830 mm.
  • Electrical connections: 230 V – 50 Hz – 10 A. Year: 1999.

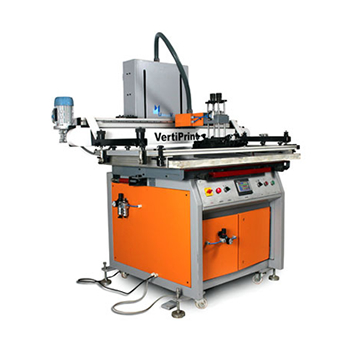

UmraoV – Verti Print Screen Printing Machine

These machines are designed and manufactured by skilled expertise using advanced techniques and high-grade steel. With the use of precision engineered components, these machines possess excellent functionality and robustness. Different attributes incorporate being made with contemporary innovation, having the finest quality parts alongside application particular plan and long working life. UV spot covering is another utility of plane screen printing machine.It has been cleaned thoroughly and can without much of a stretch withstand results of high weight and temperature.

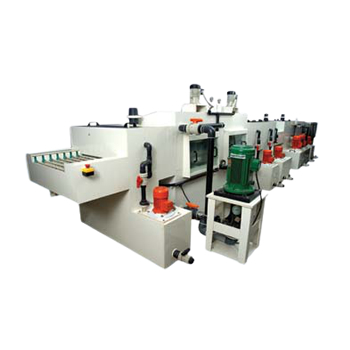

EN-SK-J220X – Double Sided Etching Machine

  • AC dive- 1 HP
  • AC geared motor 0.5 HP for conveyor drive shaft
  • Glass fibre conveyor rods and titanium/glass fibre main shaft
  • PP discs
  • PE-UHMW spur gears & bevel gears and side holders for longer life
  • One set of neoprene rubber rollers at entry and exit of each chamber for controlling carry over.
  • Digital conveyor speed control
  • Maximum conveyor speed 6 mtrs. per minute
  • Bonfiglioli make oscillation AC geared motor 0.5 HP

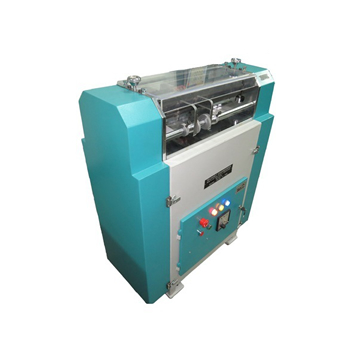

MCGM-NR Multi cutter V-groove Machine

  • Easy and Fast Setting of V-Scoring Cutters for various width and Depths.
  • Fast change over from one setting to another.
  • Harden Ground and Hard chrome Plated Cutter Shaft for Long Life working.
  • Nickel chrome Plated Side and Guide plate for Rust Proof working.
  • Heavy Sheet Metal fabrication for sturdy working.

Scrubbing / Deburring Machine

PP 12 mm thick frame with toughened glass covers or stainless steel holders & covers mounted on MS painted frame with clear PVC-covers

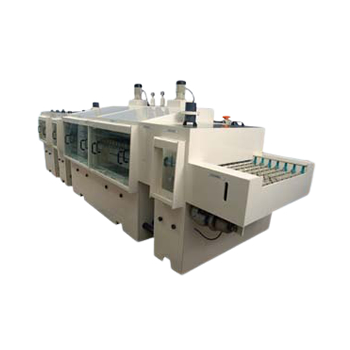

Dry film Stripping Machine

  • AC dive- 1 HP
  • AC geared motor 0.5 HP for conveyor drive shaft
  • SS-316 conveyor rods and shaft
  • PP discs
  • PE-UHMW spur gears & bevel gears and side holders for longer life
  • One set of neoprene rubber rollers at entry and exit of each chamber for controlling carry over.
  • Digital conveyor speed control
  • Maximum conveyor speed 6 mtrs. per minute
  • Bonfiglioli make oscillation AC geared motor 0.5 HP
